Hook A
Compare the curve and opening with your old deck. Take a side photo without an oblique perspective.

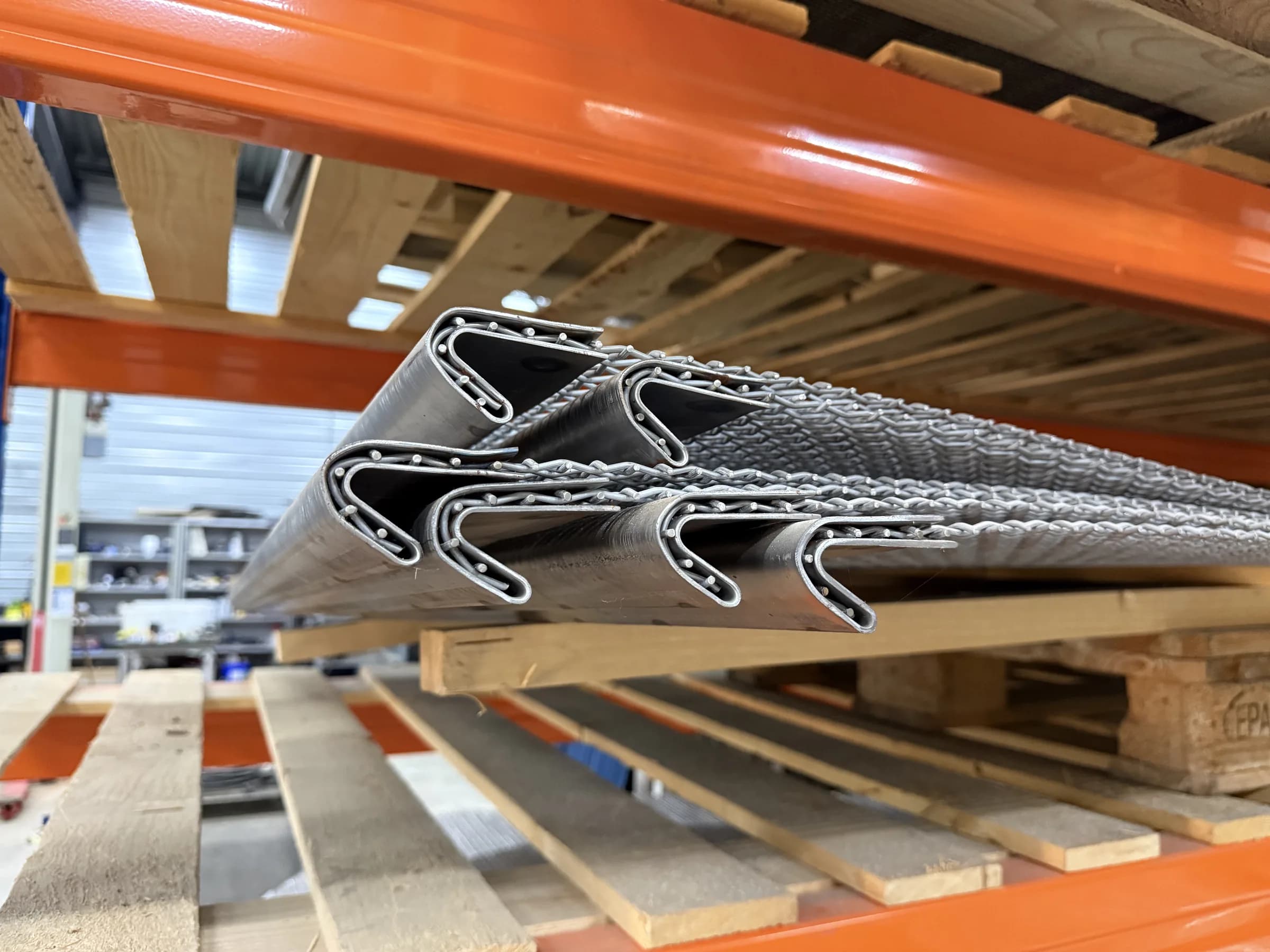

Which hook type does your screen deck have?
The shape and direction of the hook determine how the deck is stretched. Compare both sides; they do not always have to face the same direction.
A, B, CDifferent profilesSAOne top, one bottomAlwaysPhoto both sides
Compare the hook shape
The letters name the profile. In addition, always check the direction of the left and right hook.
Hook B
Compare the letter, shape and size with your old deck. This profile engages differently than hook A.
Hook C
A lower profile. Lay the side flat and compare the complete shape with the drawing.
Crochet in S direction
One ​​crochet is above and the other below. Write which side is up when you look at the material flow.
The letter alone is not enough
Hook height, angle, radius and direction may differ per machine or year of manufacture. Therefore, always send photos from the left and right.
Take good photos
Side viewCamera straight on the profile, not at an angle
Add sizeRuler or measuring tape next to the hook
Both sidesLeft and right hook separately
MachineInclude brand, model and cover position
Hook type not sure yet?
Send both side photos and your machine details. We help you recognize the available specification.
